Atmospheric centrifuge series

Atmospheric centrifuge compressor

Displacement：0.6MPa~10MPa

Motor power：37~280KW

Straight pipe design, no core pulling during maintenance, easy maintenance, and 90% of maintenance time is saved

No wearing parts, low maintenance cost

With large-scale design, high-efficiency heat exchange, low water consumption and ultra-low gas pressure loss, it can save 1-2% energy compared with the traditional structure

Patented variable cross-section design, good gas-liquid separation effect

Stainless steel supporting core design reduces the risk of corrosion

Without fasteners, the risk of falling and damaging the impeller is 0

Support at both ends, and the risk of resonance damage of cooler core is 0

Super long life drain valve, no rust, strong drainage, zero gas loss

Consulting

Download

Product Overview

Configuration Advantages

impeller

Aviation grade high efficiency and high reliability titanium alloy impeller

Reinforced corrosion-resistant special coating impeller (referred to as gold impeller) resists the invasion of special gas

Five axis precision machining Forging three-dimensional flow backward bending design impeller, higher aerodynamic efficiency

Large flow design of long and short blades

Lower flow loss and better adaptability to off design conditions
host
Gearbox cooler bearing diffuser labyrinth seal
High efficiency outer cochlea
The airflow of the outer cochlea is less than that of the inner cochlea, and the efficiency is increased by 2%

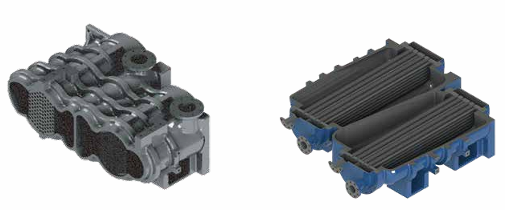

Patented high efficiency and high reliability cooler

Compact structure, short tube pass, saving installation space and convenient installation
Isobaric water supply to reduce the risk of water grabbing

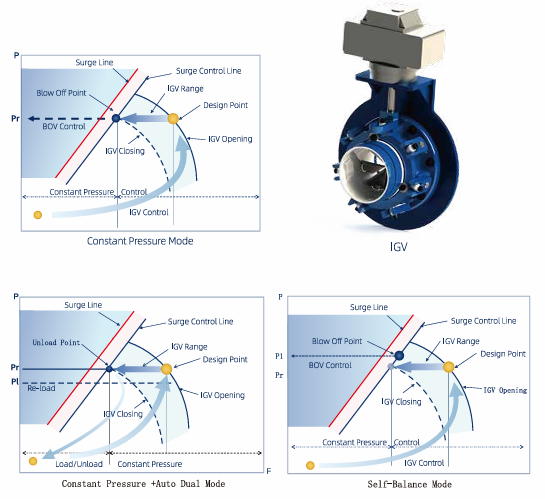

Precise and energy-saving regulation mode

The efficiency of the compressor with IGV is 7-9% higher than that with butterfly valve, because IGV has the function of inlet pre rotation, so that the gas enters the impeller at the same angle as the impeller. In addition, IGV can also provide a wider adjustment range, so that the air flow disturbance is small and the adjustment is stable. The compressor adopts highly reliable vent control valve, which can work within the flow range of 0-100%, and can be loaded and unloaded 200000 times a year.

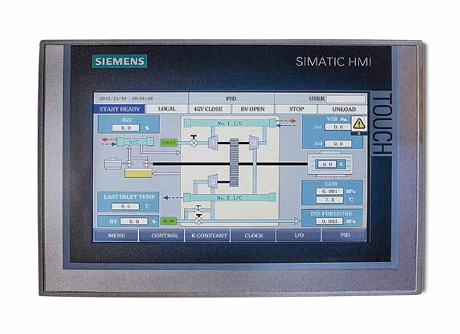

Siemens PLC touch screen control system

Advanced PLC control system, 7-inch touch screen, friendly interface and simple operation
Automatic dual, constant pressure control and self balance control modes are provided to automatically adjust the gas volume
Display all operating parameters and provide parameter setting
It has various adjustable alarm and shutdown functions
It has anti surge function and surge prediction function
It can communicate through DH +, MODBUS, PROFIBUS or Ethernet protocol
