Low pressure centrifugal blower series

Displacement：0.04Mpa~0.15Mpa

Motor power：30~600KW

High performance: the total efficiency of the system reaches 75%, greatly saves energy, grafts the mature air bearing technology of aircraft engine, the air volume is adjustable, the adjustment range is 45 ~ 100%, there is no vibration during operation, and the noise is lower than 80dba, providing the automatic operation mode required on site

Good reliability: grafting mature air bearing technology of aircraft engine, 120% impeller rotation speed and strength verification test, 110% motor overload test, and the whole machine has been used for more than ten years

Easy to operate: one click start and fool operation provide users with convenient communication interface for remote control. It is equipped with fault self diagnosis system to help users quickly eliminate faults

Easy installation and maintenance: electromechanical integration, power connection and availability, the machine does not need to be fixed, the installation is simple, there is no need to add notes, and the lubricating oil is replaced

Consulting

Download

Product Overview

Configuration Advantages

Air suspension bearing

Use high-speed rotating centrifugal force to suspend itself; Simple structure without auxiliary devices such as lubricating oil supply- The work is non-contact and does not need maintenance and repair; No vibration of bearing; Start / stop durability guarantee, 40000 tests through on / 0ff test.

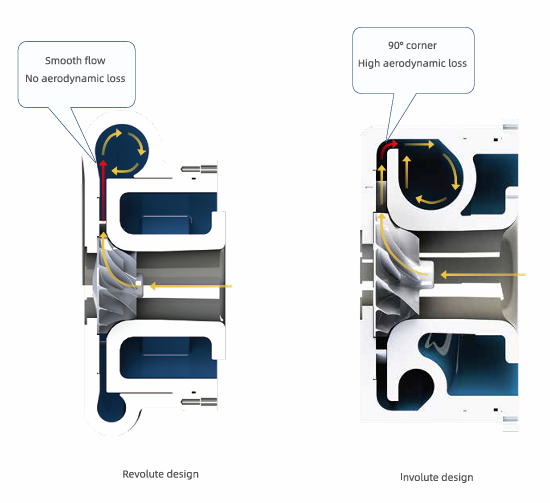

Three dimensional flow wheel

High compression efficiency, novel three-dimensional structure design; High anti surge stability, strong bearing capacity and overload capacity of 120%;
It is made of high-strength forged aluminum alloy al7075 and precision manufactured by 5-axis machining center to adapt to the harsh working conditions of high temperature and high pressure; The surface is subject to anti-oxidation and anti-corrosion treatment
High speed motor
High efficiency permanent magnet synchronous motor (PMSM) is adopted, with efficiency ≥ 96%; Compact overall dimensions; It can realize accurate speed regulation; The motor shaft is directly connected with the impeller, and the transmission efficiency is 100%; Insulation grade is h (maximum temperature resistance 170 ° C); Number of motor poles: 2 poles; The suitable power supply is AC380V / 50Hz.

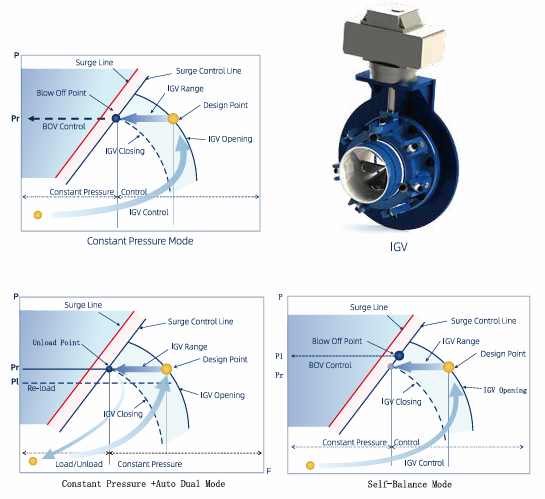

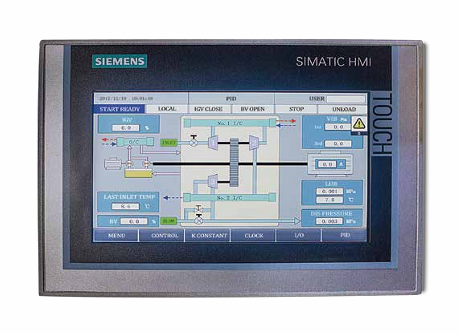

controller
Control module suitable for centrifugal blower; Start the turbo switch, and the Chinese display touch screen shall be equipped once; Load shutdown has powerful man-machine data exchange channel: communication interface with upper computer is provided; Set anti surge protection measures for old errors in operation to ensure the safe use of the equipment; Sye 5 tb125 provides a variety of operating modes.

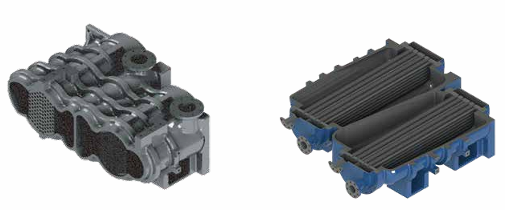

Motor cooling system
According to the heating capacity of the motor under different loads, high-efficiency motor cooling technology is adopted: forced air cooling is adopted below 300hp (including), and internal circulating water cooling is adopted above 300hp.
